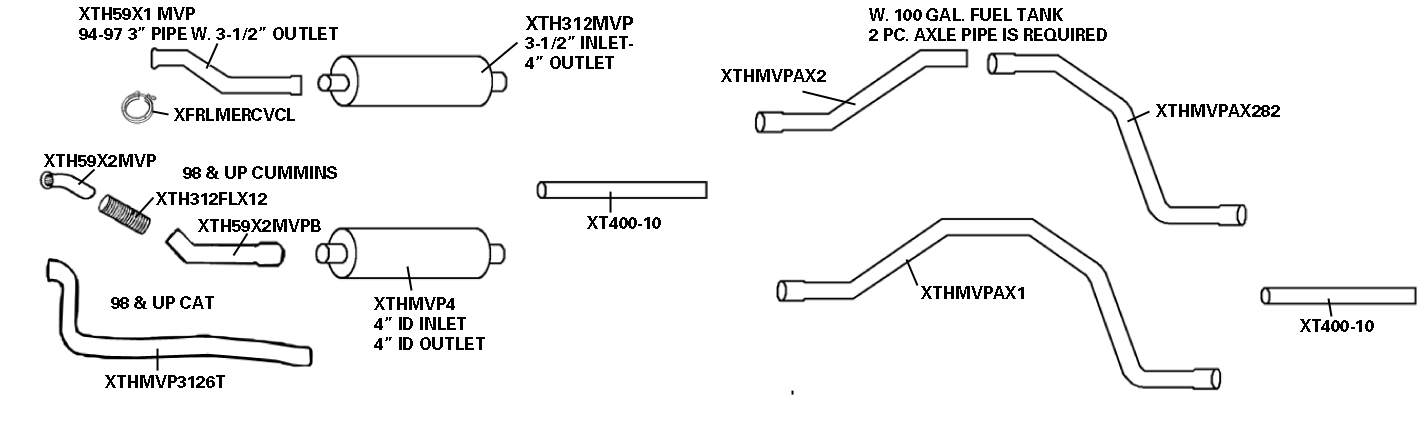

Thomas
MVP E/F B Series Cummins Engine 1994 & Up, Caterpillar
3126 1998 & UP
|
|
|
|
Year
|
Engine
Pipe
|
Muffler
|
Tube
|
Overaxle
|
Tube
|
|
94-97
Cum.
|
XTH59X1MVP*
OE #6224-0587
|
XTH312MVP
|
XT400-10
|
XTHMVPAX2
and XTHMVPAX282 - 2 pc. for use w/ 100 gal. Fuel
Tank
|
XT400-10
|
|
98
- UP Cum.
|
3 PC.:XTH59X2MVP*
|
|
XTHMVPAX1
- 1 pc. pipe
OE #04-18363-001
|
|
98
- UP Cat
|
XTHMVP3126T
|
|
|
|
|
| *
All engine pipes use XFRLMERCVCL V-Clamp |
|
|
|
|
|
Thomas
All-Star B Series Cummins Engine 1993 & Up
|
|
Engine
Pipe |
Connector |
Size |
Muffler |
Extension |
Front
Axle |
Rear
Axle |
Extension |
|
XTH59X14 |
XTH59RX4 |
3" |
XTH3M7
- 3" IN 3" OUT |
XX3-24 |
XTH3TF5 |
XTH3AXR7 |
XTH3TR |
|
4" |
XTH4M7
- 3" IN 4" OUT
OE #8648-0328
|
XX4-24 |
XTH4TF5 |
|
XTH4TR |
|
V-Clamp
- XFRLMERCVCL |
|
|
|
|
|
|
|
|
Optional
Side Exit Pipe
|
|
3"
Side Exit - XTH3SE
|
|
4"
Side Exit - XTH4SE
|
|
Thomas
Saf-T-Liner Front Engine 5.9 Liter Cummins Turbo Diesel
Engine
Includes Part Numbers: XTH59X12, XTH59RX4, XTH4M7, XTH4TF5, XTH4AXF8, XTH4AXR7, XTH4TR7, XTH4TF5 & XTH4SE4
|
| INTERCHANGES: XTH59X12- 8648-0403, XTH4M7- 8648-0328, XTH4AXF8- 8648-0995, XTH4AXR7- 8648-0996, |
|

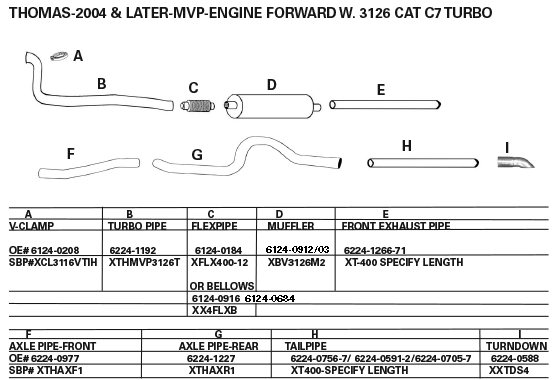

Parts Include: XCL3116VTIH, XFRX400-12, XX4FLXB, XBV3126M2, XT-400, XTHAXR1, XXTDS4 |
| INTERCHANGES: XCL3116VIH- 6124-0208, XTHMVP3126T- 6224-192T/ 1192, XFLX400-12- 6124-0184, XX4FLXB- 6124-0916/ 6224-0684, XBV3126M2- 6124-0912/0913, XT-400- 6224-1266-71, XTH4AXR1- 6224-1227/ 1277, XT-400- 6224- 0756-7/ 6224-0591-2/ 6224-0705-7, XXTDS4- 6224-0588 |
THOMAS-ENGINE FORWARD-2007 & LATER-OVER AXLE PIPES-WITH SPRING SUSPENSION |
|
|

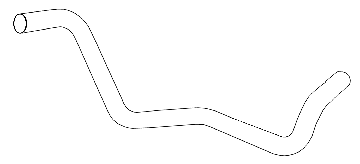

AXLE PIPE
XTH4OAX4
Replaces OE #131331 |
AXLE PIPE
XTH4OAX3
Replaces OE #126017 |
|
|

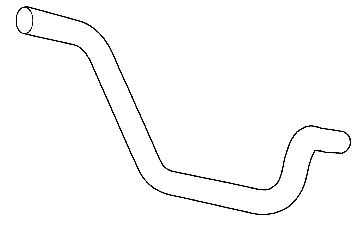

AXLE PIPE XTH4OAX2 Replaces OE #147570 |

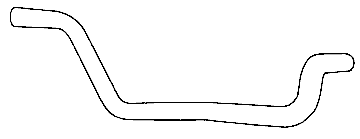

AXLE PIPE XTH4OAX Replaces OE #138300 |
|
|

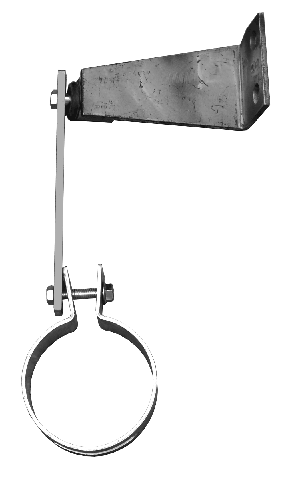

XFRL4PH-R
Replaces OE #A04-22039-000 |

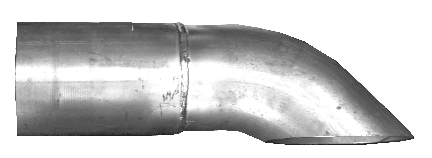

XXTDS4 4" ID
Replaces OE #04-20434-000
|

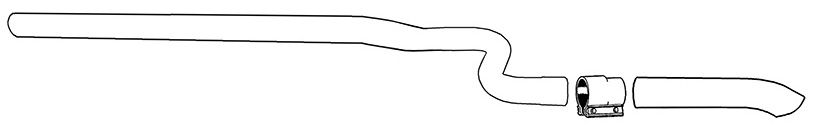

THOMAS-ENGINE FORWARD-2007 & LATER-OVER AXLE PIPES-WITH AIR SUSPENSION W. ADDITIONAL 8 FT. OF TAILPIPE LENGTH |
|
|

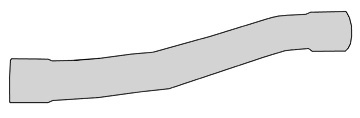

XTH4AXF10 FRONT OVERAXLE PIPE- Replaces OE #132924 |

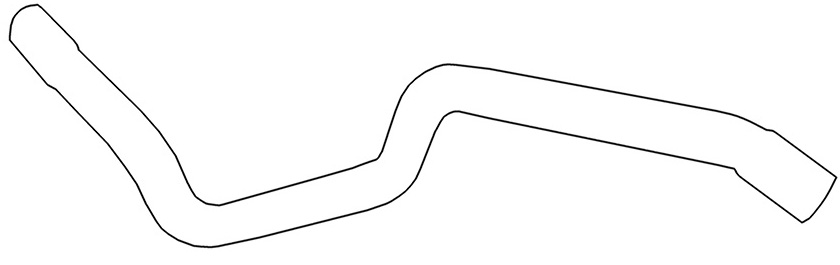

XTH4AXR9 REAR OVERAXLE PIPE- Replaces OE #147569 |
|
|
XTH4MVPTP- has additional 8 ft. added on front for fit adjustment-replaces many OE Part Numbers-also features slip joint at rear of pipe. Replaces OE #14752-77, 147615
|
use SEAL Clamp XSC4 or XSC4R |
XXTD4-1 4" Turndown |
|
|
Mufflers
on This Page
|
|
Inlet
|
Outlet
|
Inlet
|
Outlet
|
|
XTH312MVP
|
3.5"
|
4"
|
Center
|
Center
|
|
XTH4MVP
|
4"
|
4"
|
Center
|
Center
|
|
XTH4M7
|
3"
|
4"
|
Center
|
Offset
|
|
|
